SProS::Surface Interface Reference

A SEDML Surface. More...

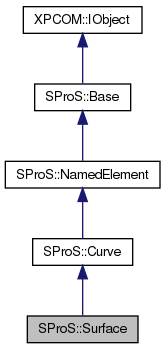

Inheritance diagram for SProS::Surface:

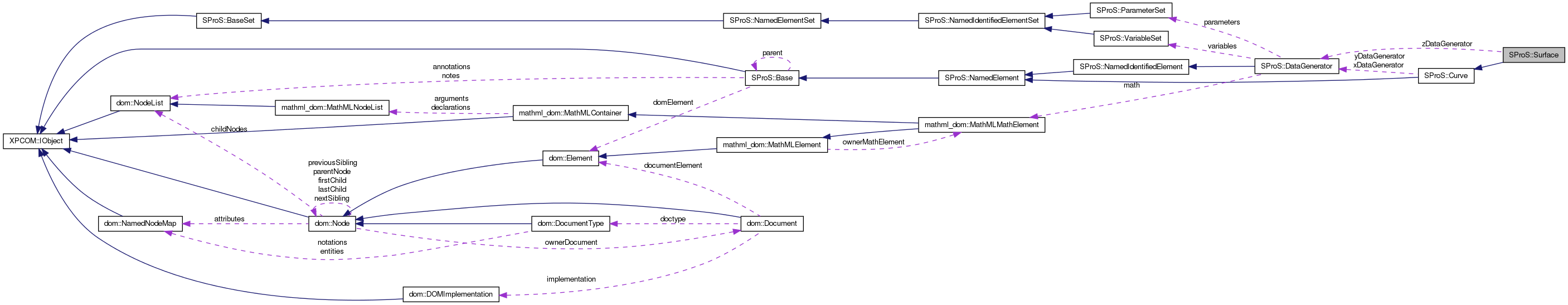

Collaboration diagram for SProS::Surface:

Public Attributes
attribute boolean	logZ
	If true, log the Z axis.
attribute wstring	zDataGeneratorID
	The identifier of the Z-axis data generator.
attribute DataGenerator	zDataGenerator
	The Z-axis data generator (if it can be found, otherwise null).
Public Attributes inherited from SProS::Curve
attribute boolean	logX
	If true, log-transform the X axis.
attribute boolean	logY
	If true, log-transform the Y axis.
attribute wstring	xDataGeneratorID
	The identifier of the X-axis data generator.
attribute wstring	yDataGeneratorID
	The identifier of the Y-axis data generator.
attribute DataGenerator	xDataGenerator
	The X-axis data generator (if it can be found, otherwise null).
attribute DataGenerator	yDataGenerator
	The Y-axis data generator (if it can be found, otherwise null).
Public Attributes inherited from SProS::NamedElement
attribute wstring	name
	The human readable name of the element (not guaranteed to be unique).
Public Attributes inherited from SProS::Base
readonly attribute dom::Element	domElement
	The underlying DOM element.
readonly attribute dom::NodeList	notes
	The list of all note elements associated with this element.
readonly attribute dom::NodeList	annotations
	The list of all annotations associated with this element.
readonly attribute Base	parent
	The parent of this element, or null.
Public Attributes inherited from XPCOM::IObject
readonly attribute string	objid
	Fetches the ID of the object.

Additional Inherited Members
Public Member Functions inherited from XPCOM::IObject
void	add_ref ()
	Called to indicate that some code is keeping an owning reference to the object.
oneway void	release_ref ()
	Removes a reference to an object which was created by some other means (e.g.
IObject	query_interface (in utf8string id)
	Returns an IObject of the same implementation, which supports a specific interface.

Detailed Description

A SEDML Surface.

Definition at line 940 of file SProS.idl.

Member Data Documentation

attribute boolean SProS::Surface::logZ

If true, log the Z axis.

Definition at line 946 of file SProS.idl.

attribute DataGenerator SProS::Surface::zDataGenerator

The Z-axis data generator (if it can be found, otherwise null).

Definition at line 957 of file SProS.idl.

attribute wstring SProS::Surface::zDataGeneratorID

The identifier of the Z-axis data generator.

Definition at line 951 of file SProS.idl.
