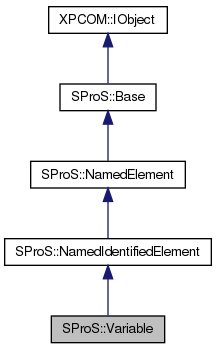

Inheritance diagram for SProS::Variable:

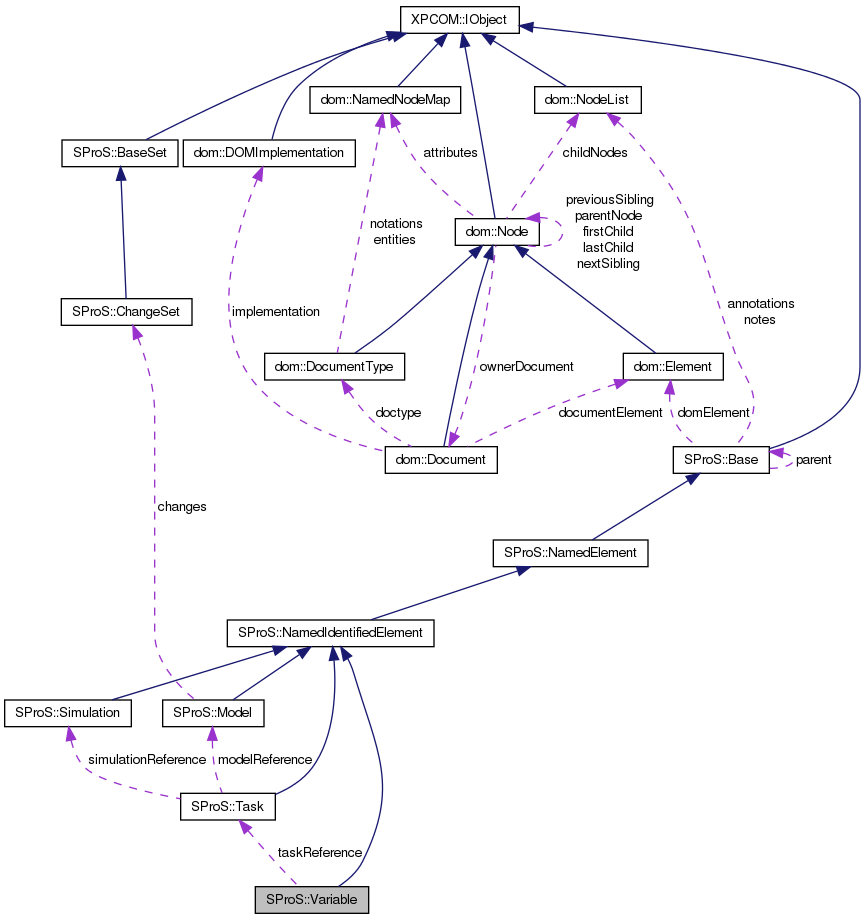

Collaboration diagram for SProS::Variable:

Public Attributes
attribute wstring	target
	The XPath expression describing the variable target.
attribute wstring	symbol
	The symbol for the variable.
attribute wstring	taskReferenceID
	A reference to the task (by ID) from which this variable is sourced (variables in DataGenerators only).
attribute Task	taskReference
	A reference to the task (as a task object) from which this variable is sourced (variables in DataGenerators only).
Public Attributes inherited from SProS::NamedIdentifiedElement
attribute wstring	id
	The unique identifier for the element.
Public Attributes inherited from SProS::NamedElement
attribute wstring	name
	The human readable name of the element (not guaranteed to be unique).
Public Attributes inherited from SProS::Base
readonly attribute dom::Element	domElement
	The underlying DOM element.
readonly attribute dom::NodeList	notes
	The list of all note elements associated with this element.
readonly attribute dom::NodeList	annotations
	The list of all annotations associated with this element.
readonly attribute Base	parent
	The parent of this element, or null.
Public Attributes inherited from XPCOM::IObject
readonly attribute string	objid
	Fetches the ID of the object.

Additional Inherited Members
Public Member Functions inherited from XPCOM::IObject
void	add_ref ()
	Called to indicate that some code is keeping an owning reference to the object.
oneway void	release_ref ()
	Removes a reference to an object which was created by some other means (e.g.
IObject	query_interface (in utf8string id)
	Returns an IObject of the same implementation, which supports a specific interface.

Detailed Description

A SEDML Variable.

Definition at line 781 of file SProS.idl.

Member Data Documentation

attribute wstring SProS::Variable::symbol

The symbol for the variable.

Definition at line 792 of file SProS.idl.

attribute wstring SProS::Variable::target

The XPath expression describing the variable target.

Definition at line 787 of file SProS.idl.

attribute Task SProS::Variable::taskReference

A reference to the task (as a task object) from which this variable is sourced (variables in DataGenerators only).

Definition at line 804 of file SProS.idl.

attribute wstring SProS::Variable::taskReferenceID

A reference to the task (by ID) from which this variable is sourced (variables in DataGenerators only).

Definition at line 798 of file SProS.idl.
