A TransformedModel is the outcome of processing a model in accordance with the instructions found in a SED-ML description. More...

Inheritance diagram for SRuS::TransformedModel:

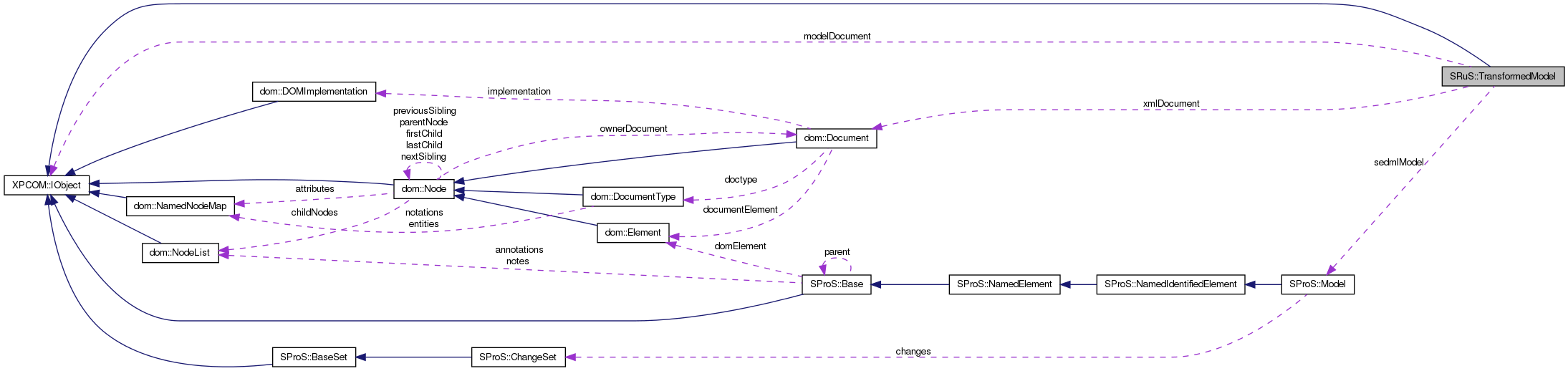

Collaboration diagram for SRuS::TransformedModel:

Public Attributes
readonly attribute dom::Document	xmlDocument
	xmlDocument describes the document as an XML DOM representation.
readonly attribute XPCOM::IObject	modelDocument
	modelDocument describes the document as a representation specific to the modelling language.
readonly attribute SProS::Model	sedmlModel
	The SED-ML model this transformed model corresponds to.
Public Attributes inherited from XPCOM::IObject
readonly attribute string	objid
	Fetches the ID of the object.

Additional Inherited Members
Public Member Functions inherited from XPCOM::IObject
void	add_ref ()
	Called to indicate that some code is keeping an owning reference to the object.
oneway void	release_ref ()
	Removes a reference to an object which was created by some other means (e.g.
IObject	query_interface (in utf8string id)
	Returns an IObject of the same implementation, which supports a specific interface.

Detailed Description

A TransformedModel is the outcome of processing a model in accordance with the instructions found in a SED-ML description.

Definition at line 68 of file SRuS.idl.

Member Data Documentation

readonly attribute XPCOM::IObject SRuS::TransformedModel::modelDocument

modelDocument describes the document as a representation specific to the modelling language.

Implementation of this attribute is optional, and if it is not implemented, the attribute should have value 'null'.

Definition at line 81 of file SRuS.idl.

readonly attribute SProS::Model SRuS::TransformedModel::sedmlModel

The SED-ML model this transformed model corresponds to.

Definition at line 86 of file SRuS.idl.

readonly attribute dom::Document SRuS::TransformedModel::xmlDocument

xmlDocument describes the document as an XML DOM representation.

Definition at line 74 of file SRuS.idl.
